KQ2 Pneumatic Fitting Range
Product Information SheetKQ2 Pneumatic Fitting Range
Suitable for General Purpose Applications
Compatible with the following Leda Tubing:
- Ledathene – Formula F45 – Food, Air & Industrial
- Ledalon 12 – Formula N12 – Fuel, Oil & Air
- Airflex – Formula A70
- Ultrachem – Formula U80
- Ledalon 11 – Formula N11 – High Pressure (fittings have lower pressure limit than tubing)
Features:
- “One Touch” Fitting – Compact and Lightweight Design
- Release collar allows easy removal of tubing without damaging the tube
- All plastic construction – ideal for conveying air and water
- Can be used for a wide range of pressures from a -100kPa vacuum up to a pressure of 1.0MPa (145 Psi)
- Highly durable with wide temperature working range
- Threaded fittings come with BSP threads and sealant already applied.
KQ2 Fitting Range Properties:
| Recommended Fluids | Air / Water |
|---|---|
| Pressure Range | −100 kPa to 1 MPa |
| Temperature Range | −5 to 60°, Water: 0 to 40°C (No freezing) |
| Chuck Material | Stainless Steel (304) |
| Seal Material | Nitrile Rubber |
| Threaded Portion Material | Brass (C3604) – Electroless Nickel Plated |
| Body Material | PBT, POM |

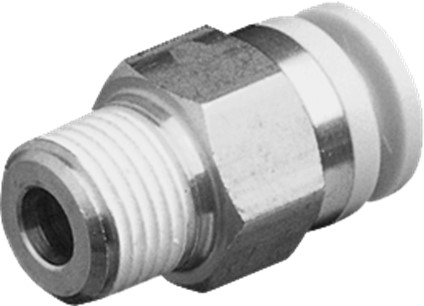

Male Connector:
| Image | Product Code | Tube Outside Diameter (mm) | Thread | Qty Per Pack |
|---|---|---|---|---|
 | FG-KQ2H06-02NS1 | 6.0 | 1/4” BSP | 10 |
| FG-KQ2H08-02NS | 8.0 | 1/4” BSP | 10 | |
| FG-KQ2H10-02NS | 10.0 | 1/4” BSP | 10 | |
| FG-KQ2H12-03NS | 12.0 | 3/8” BSP | 10 |

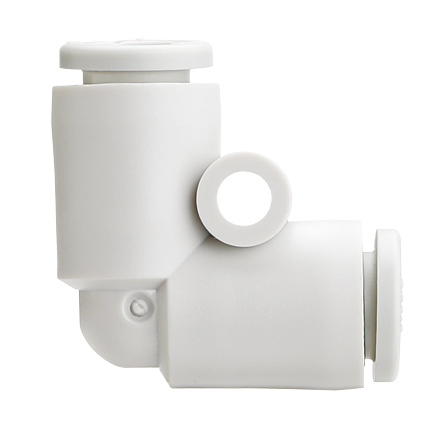

Union Elbow :
| Image | Product Code | Tube Outside Diameter (mm) | Qty Per Pack |
|---|---|---|---|
 | FG-KQ2L06-00A1 | 6.0 | 10 |
| FG-KQ2L08-00A | 8.0 | 10 | |
| FG-KQ2L10-00A | 10.0 | 10 | |
| FG-KQ2L12-00A | 12.0 | 10 |

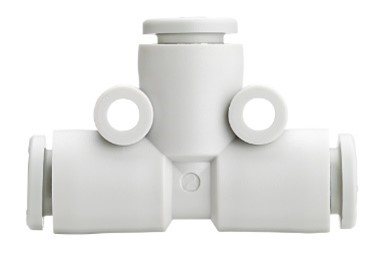

Union Tee :
| Image | Product Code | Tube Outside Diameter (mm) | Qty Per Pack |
|---|---|---|---|
 | FG-KQ2T06-00A1 | 6.0 | 10 |
| FG-KQ2T08-00A | 8.0 | 10 | |
| FG-KQ2T10-00A | 10.0 | 10 | |
| FG-KQ2T12-00A | 12.0 | 10 |
