KQG2 Pneumatic Fitting Range

Stainless Steel 316 Construction – Suitable for Food Contact

Compatible with the following Leda Tubing:

• Ledathene – Formula F45 – Food, Air & Industrial
• Ledalon 12 – Formula N12 – Fuel, Oil & Air
• Airflex – Formula A70
• Ultrachem – Formula U80
• Ledalon 11 – Formula N11 – High Pressure (fittings have lower pressure limit than tubing)

Features:

• “One Touch” Fitting – Compact and Lightweight Design
• Release collar allows easy removal of tubing without damaging the tube
• All Stainless Steel 316 construction – safe for food contact and compatible with steam applciations
• Can be used for a wide range of pressures from a -100kPa vacuum up to a pressure of 1.0MPa (145 Psi)
• Highly durable with wide temperature working range (up to 150°C)
• Threaded fittings come with BSP threads and sealant already applied.

KQG2 Fitting Range Properties:

Male Connector:

Image	Product Code	Tube Outside Diameter (mm)	Thread	Qty Per Pack
	FG-KQG2H06-02S	6.0	1/4” BSP	10
	FG-KQG2H08-02S	8.0	1/4” BSP	10
	FG-KQG2H10-02S	10.0	1/4” BSP	10
	FG-KQG2H12-03S	12.0	3/8” BSP	10

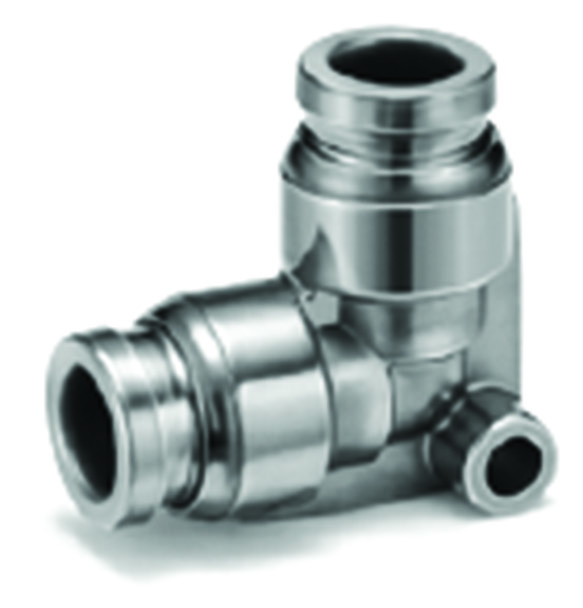

Union Elbow :

Image	Product Code	Tube Outside Diameter (mm)	Qty Per Pack
	FG-KQG2L06-00	6.0	10
	FG-KQG2L08-00	8.0	10
	FG-KQG2L10-00	10.0	10
	FG-KQG2L12-00	12.0	10

Union Tee :

Image	Product Code	Tube Outside Diameter (mm)	Qty Per Pack
	FG-KQG2T06-00	6.0	10
	FG-KQG2T08-00	8.0	10
	FG-KQG2T10-00	10.0	10
	FG-KQG2T12-00	12.0	10

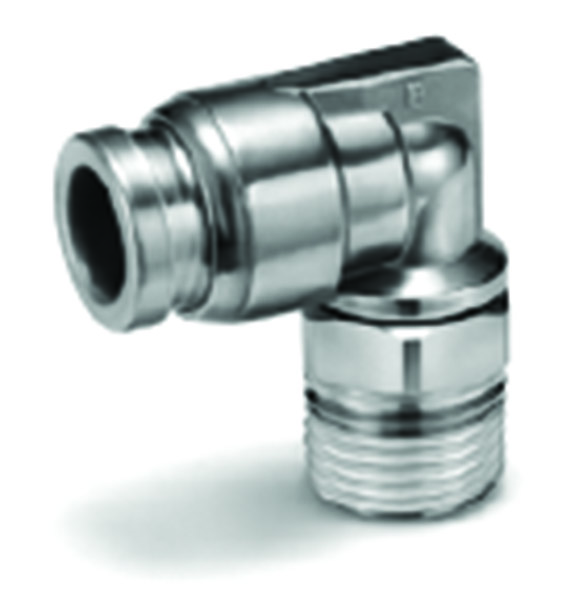

Male Elbow:

Image	Product Code	Tube Outside Diameter (mm)	Thread	Qty Per Pack
	FG-KQG2L06-02S	6.0	1/4” BSP	10
	FG-KQG2L08-02S	8.0	1/4” BSP	10
	FG-KQG2L10-02S	10.0	1/4” BSP	10
	FG-KQG2L12-03S	12.0	3/8” BSP	10
