LQ1 Pneumatic Fitting Range
Product Information SheetLQ1 Pneumatic Fitting Range
Suitable for applications that need superior Chemical Resistance
Compatible with the following Leda Tubing:
- Ultrachem – Formula U80
Features:
- Quadruple Seal Design with Threaded Nuts
- High Purity Fluoropolymer (PFA) Construction
- Safe for temperatures up to 200°C
- Can be used for a wide range of pressures from a -100kPa vacuum up to a pressure of 1.0MPa (145 Psi)
- Threaded fittings come with BSP threads and sealant already applied.
- Not intended for use in potable water applications
LQ1 Fitting Range Properties:
| Recommended Fluids | Air / Water / Chemicals (including Caustic) |
|---|---|
| Pressure Range | −100 kPa to 1 MPa |
| Temperature Range | 0 to 200° |
| Construction Material | PFA |

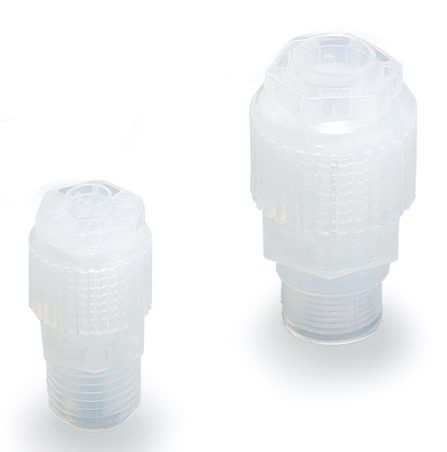

Male Connector:
| Image | Product Code | Tube Outside Diameter (mm) | Tube Inside Diameter (mm) | Thread | Qty Per Pack |
|---|---|---|---|---|---|
 | FG-LQ1H21-M | 6.0 | 4.0 | 1/4” BSP | 10 |
| FG-LQ1H32-M | 8.0 | 6.0 | 1/4” BSP | 10 | |
| FG-FG-LQ1H31-M | 10.0 | 8.0 | 1/4” BSP | 10 |

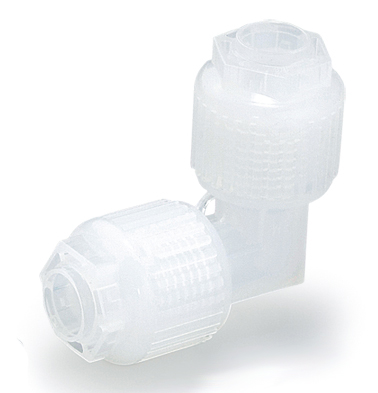

Union Elbow :
| Image | Product Code | Tube Outside Diameter (mm) | Tube Inside Diameter (mm) | Qty Per Pack |
|---|---|---|---|---|
 | FG-LQ1E21 | 6.0 | 4.0 | 10 |
| FG-LQ1E32 | 8.0 | 6.0 | 10 | |

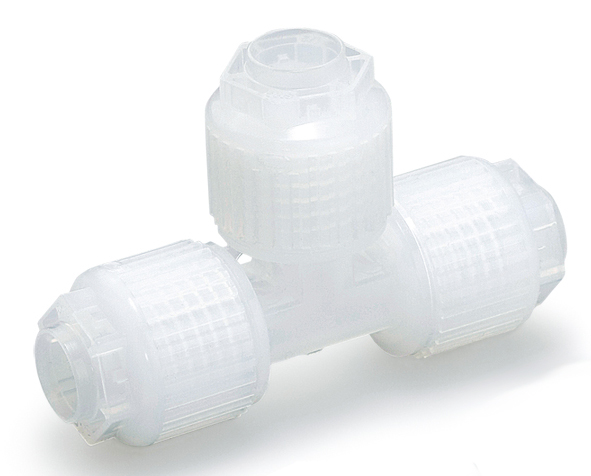

Union Tee :
| Image | Product Code | Tube Outside Diameter (mm) | Tube Inside Diameter (mm) | Qty Per Pack |
|---|---|---|---|---|
 | FG-LQ1T21 | 6.0 | 4.0 | 10 |
| FG-LQ1T32 | 8.0 | 6.0 | 10 | |
