Chemflex
Product Information SheetChemflex
Formula C20
Main Applications:
- Lightweight alternative to PVC and rubber tubing
- Exposure to acids, alkalis and cleaning fluids

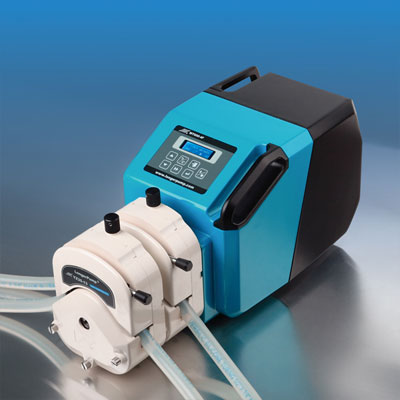

- Peristaltic pump dispensing
- Hot beverage dispensing
Features:
- Excellent flexural fatigue resistance
- Excellent wear and abrasion resistance
- Ozone and UV resistant
- High resistance to chemical attack (including common cleaning fluids and sanitisers)
- Can withstand sanitation in autoclave and gamma radiation exposure
Material Properties:
| Specific Gravity | 0.95 +/- 0.02 |
|---|---|
| Tensile Strength | 6.8 MPa |
| Temperature Range | -20 to +80 °C |
| Hydraulic Burst Pressure (maximum) | 5 Bar / 75 PSI |
Colours:
| Natural |
Product Specifications:
| Product Code | Outside Diameter (mm) | Tolerance (mm) | Nominal ID (mm) | Standard Coil (m) |
|---|---|---|---|---|
| C20-04 | 4.00 | +0.05 / -0.10 | 2.5 | 100 |
| C20-06 | 6.00 | +0.05 / -0.10 | 3.0 | 100 |
| C20-08 | 8.00 | +0.05 / -0.10 | 4.0 | 100 |
| C20-10 | 10.00 | +0.05 / -0.10 | 5.0 | 50 |
| C20-12 | 12.00 | +0.05 / -0.10 | 6.0 | 50 |
