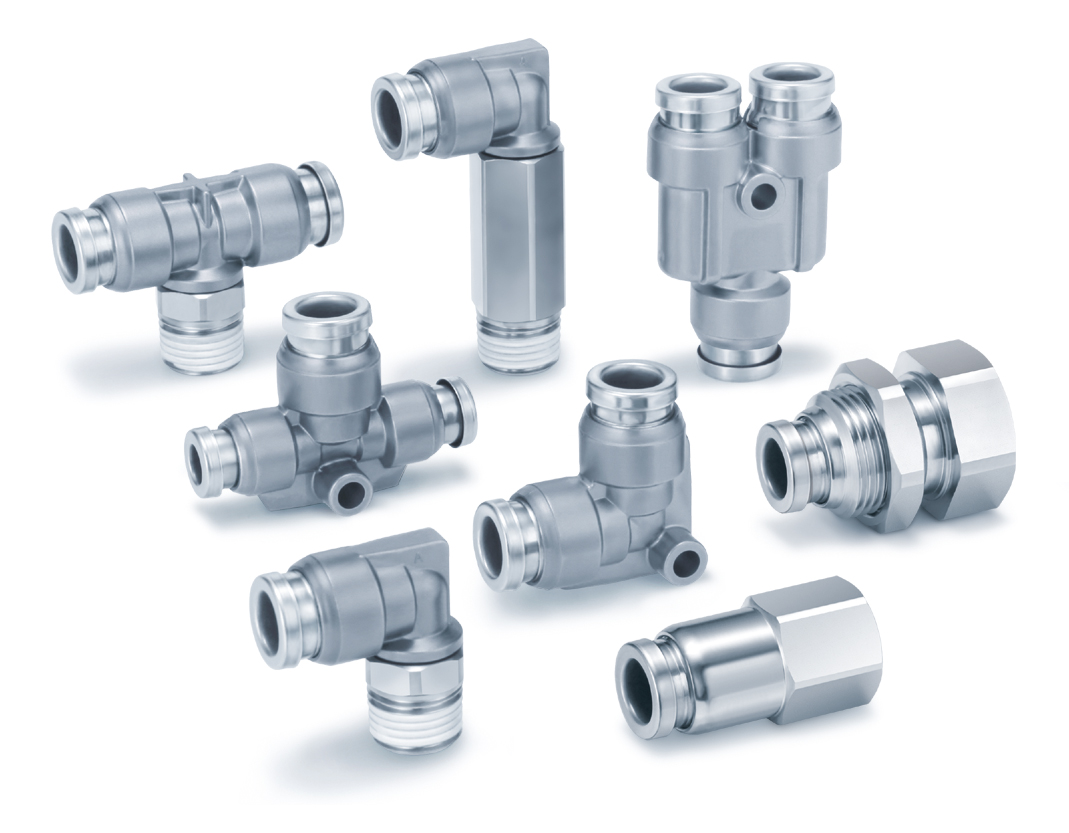

Metal One Touch Fitting – KQB2 Range

KQB2 Pneumatic Fitting Range

Suitable for General Purpose Applications – where metal fittings are preferred

Product Information Sheet

Compatible with the following Leda Tubing:

• Ledathene – Formula F45 – Food, Air & Industrial
• Ledalon 12 – Formula N12 – Fuel, Oil & Air
• Airflex – Formula A70
• Ultrachem – Formula U80
• Ledalon 11 – Formula N11 – High Pressure (fittings have lower pressure limit than tubing)

Features:

• “One Touch” Fitting – Compact and Lightweight Design
• Release collar allows easy removal of tubing without damaging the tube
• Electroless Nickel Plated Brass Body
• Stainless Steel Release Buttons, Guides and Chuck
• Grease Free
• Can be used for a wide range of pressures from a -100kPa vacuum up to a pressure of 1.0MPa (145 Psi)
• Highly durable with wide temperature working range (up to 150°C)
• Threaded fittings come with BSP threads and sealant already applied.

Male Connector:

Image	Product Code	Tube Outside Diameter (mm)	Thread	Qty Per Pack
	FG-KQB2H06-02S	6.0	1/4” BSP	10
	FG-KQB2H08-02S	8.0	1/4” BSP	10
	FG-KQB2H10-02S	10.0	1/4” BSP	10
	FG-KQB2H12-03S	12.0	3/8” BSP	10

Union Elbow :

Image	Product Code	Tube Outside Diameter (mm)	Qty Per Pack
	FG-KQB2L06-00	6.0	10
	FG-KQB2L08-00	8.0	10
	FG-KQB2L10-00	10.0	10
	FG-KQB2L12-00	12.0	10

Union Tee :

Image	Product Code	Tube Outside Diameter (mm)	Qty Per Pack
	FG-KQB2T06-00	6.0	10
	FG-KQB2T08-00	8.0	10
	FG-KQB2T10-00	10.0	10
	FG-KQB2T12-00	12.0	10

Male Elbow:

Image	Product Code	Tube Outside Diameter (mm)	Thread	Qty Per Pack
	FG-KQB2L06-02S	6.0	1/4” BSP	10
	FG-KQB2L08-02S	8.0	1/4” BSP	10
	FG-KQB2L10-02S	10.0	1/4” BSP	10
	FG-KQB2L12-03S	12.0	3/8” BSP	10
